Introduction and Classification of Filling Machines

Introduction and Classification of Filling Machines


Bottling machines are also called filling machines. Bottling means filling and vice versa.



Atmospheric filling machine
It is filled under atmospheric pressure by the dead weight of liquid. This kind of filling machine is divided into two types: regular filling and constant volume filling, which are only suitable for filling low viscosity gas-free liquids such as milk and wine.

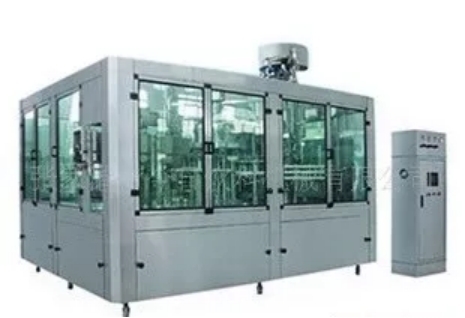

Pressure filling machine
The filling is carried out at a pressure higher than atmospheric pressure, which can also be divided into two types: one is that the pressure in the liquid storage cylinder is equal to the pressure in the bottle, and the liquid flows into the bottle by its own weight, which is called an isobaric filling. The other is that the pressure in the liquid storage tank is higher than that in the bottle, and the liquid flows into the bottle by pressure difference, which is often used in high-speed production lines. Pressure filling machines are suitable for filling gas-containing liquids, such as beer, soda, champagne, etc.

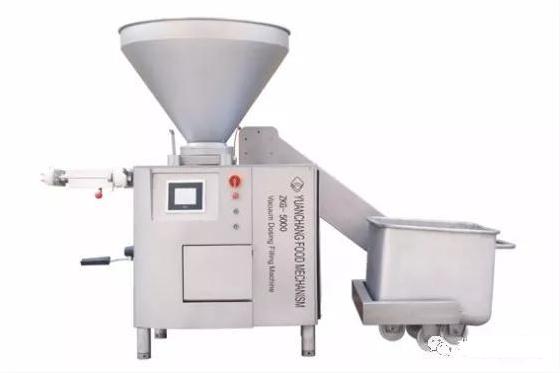

Vacuum filling machine
The filling is carried out under the condition that the pressure in the bottle is lower than the atmospheric pressure. This filling machine has a simple structure, high efficiency, and wide adaptability to the viscosity of materials, such as oil, syrup, fruit wine, etc.

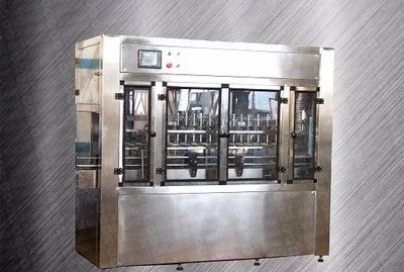

Oil filling machine
It can be filled with various oil products, such as edible oil, lubricating oil, peanut oil, soybean oil, etc. This kind of filling machine is a filling machine specially developed for oil product filling, which can realize the flexibility of manual operation and unmanned operation.



Plug filling machine
This kind of filling machine is widely used in medicine, food, daily chemical, grease, pesticide and other special industries, and can fill various liquid and paste products, such as disinfectant, hand sanitizer, toothpaste, ointment and various cosmetics.

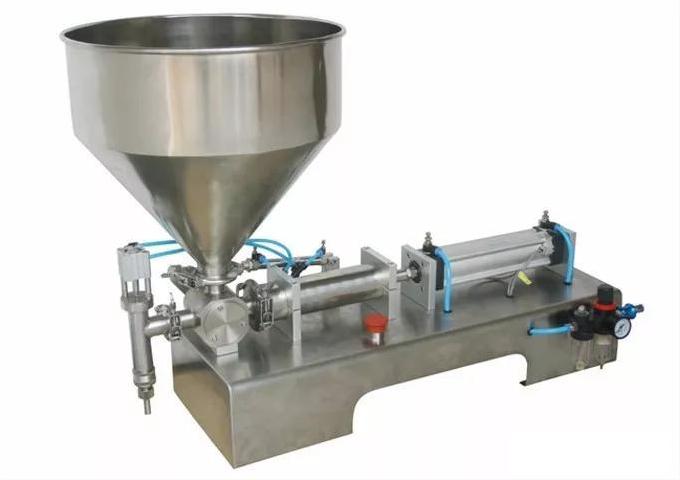

Liquid filling machine
New horizontal design, light and convenient, automatic pumping, for thick paste can be fed in the hopper. The vertical liquid filling machine has the function of switching the mode between manual and automatic: when the machine is in the "automatic" state, the machine automatically fills continuously at the set speed. When the machine is in the "manual" state, the operator steps on the pedal to realize filling. If he keeps stepping on it, it will switch to the automatic mode and continuous filling state. Anti-drip filling system: when filling is carried on, the cylinder moves up and down, driving the stuffy head. The material tank and tee joint are handcuffed, without any special tools, which is very convenient for loading, unloading and cleaning.



Paste filling machine
It is suitable for filling various viscosity products from aqua to cream and is an ideal filling machine for daily chemical, medicine, food, pesticide in other industries.



Sauce filling machine
The filling is carried out under the condition that the pressure in the bottle is lower than the atmospheric pressure. This filling machine has a simple structure, high efficiency, and wide adaptability to the viscosity of materials, such as oil, syrup, fruit wine, etc.



Granular slurry filling machines
Suitable for medicine, daily chemical, food, pesticide and special industries, it is ideal filling equipment for granular slurry viscosity fluid. This machine is a semi-automatic piston filling machine, which can fill granular slurry fluid materials. With a small size and a vertical structure, it can save a lot of space. Easy to operate, pneumatic components are FESTO from Germany and AirTac in Taiwan Province. Material contact parts are made of 316L stainless steel, which meets GMP requirements. The filling valve is controlled by a pneumatic valve, and the filling precision is higher. The filling quantity and filling speed can be adjusted at will.



Powder filling machine
This machine is suitable for quantitative filling of powdery and small granular materials in chemical, food, agricultural and by-products industries. Such as pesticides, veterinary drugs, disinfectants, washing powder, grains, seeds, milk powder, condiments, monosodium glutamate, salt, white sugar, additives, etc. Products feature in microcomputer control, accurate quantification. Parameters can be adjusted and errors can be automatically corrected. Separate strong and weak electricity without interference with high reliability and wide adaptability. The filling parts are made of all stainless steel with high machining accuracy, good interchangeability, reasonable grading, modular design, and flexible combination.
